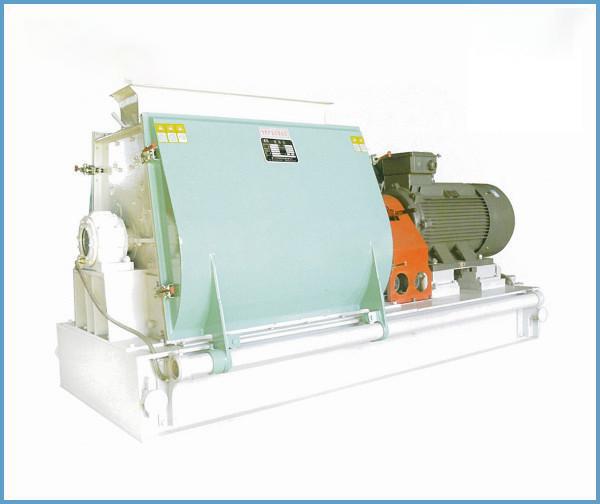

Main Introduction
The rotor diameter is increased, the linear speed increases by 1.2 times, and the efficiency increases more than 15%.
The screen device is divided into several pieces to reduce the operating costs after the sifter worn. The septum is thickened to reduce maintenance.
Reasonable structure: multi-cavity structure, hammer positioning, hammer and screen clearance is adjustable, oil lubrication, with high efficiency, low energy consumption and other advantages.
The oil lubrication structure is adopted to solve the problem of high bearing rotation speed, large rotor load, also solve the problem of difficulty in production and short service life.
The main welding parts, such as the casing and the base, are subjected to high-frequency oscillation and then processed as a whole. The body coupling part is equipped with a manual brake, which helps to reduce non-productive time and increase production efficiency.
Bearings imported from Sweden (SKF) bearings, the use of domestic famous motor brands to ensure the extension of life, reduce maintenance costs and increase production efficiency.
Widely used in feed, food, pharmaceutical, new energy, chemical industry and other materials crushing processing.
Note: 1. The series crusher capacity parameter refers to the measured parameters of various grain materials with the moisture content of 10-14% after crushing. The supporting equipment is designed and installed by our company.
2. φ0.4 screen, the fineness is 60 mesh, pass rate is ≥96.5%, and the 80 mesh pass rate is ≥95.0%.
3. φ0.5 screen, the fineness is 60 mesh, pass rate ≥ 94.6%, 80 mesh pass rate ≥ 92.4%.
4. φ0.6 screen, the fineness of 60 mesh, pass rate ≥ 93.0%, 80 mesh pass rate ≥ 90.1%.
