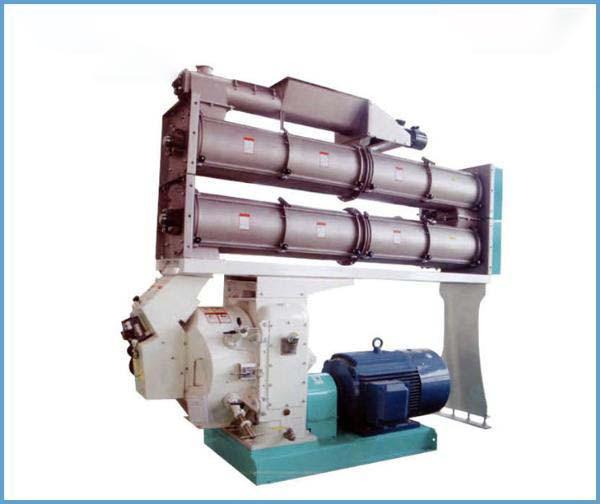

SZLH granulator
SZLH granulation machine with high efficiency, long service life, suitable for high quality pellet feed and other materials.
Performance characteristics:
The direct drive gear, high efficiency;
Whole stainless steel feeder, variable pitch anticaking arch structure, frequency control;
With large stainless steel conditioner. Conditioning, long time curing;
Conditioner shaft end special seal, using steam axial injection inlet device, materials contact with steam more fully, put an end to steam anti channeling feeder phenomenon;
The use of special casting technology, compact structure;
The main drive system of bearing and oil seal are imported, and provided a special lubricating oil return system to ensure reliable bearing lubrication;
The gear and gear shaft adopt carburizing and quenching, hardened gear grinding processing, transmission balance, low noise, long service life;
The connecting ring mode and driving wheel with three quick release type precision forging hoop, ring die easy;
The door cover and the chute is made of stainless steel, strong corrosion resistance;
Motor and gear box adopts new serpentine spring coupling, convenient disassembly, reliable use.
