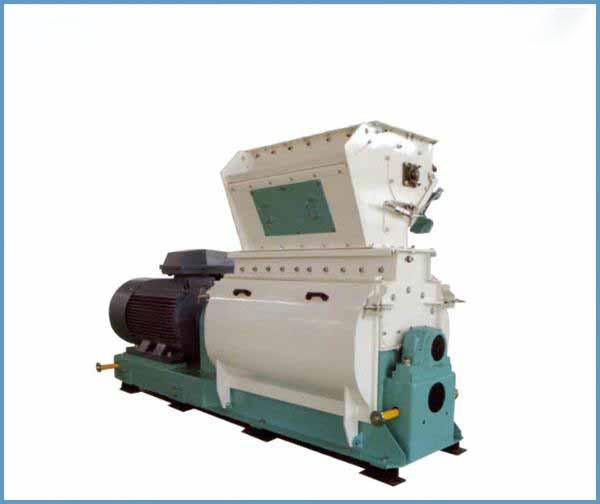

AHZC series compact mill
AHZC series widened mill can be used for pet food and fish feed processing of fine grinding, and can also be used in conjunction with feed and flour processing of coarse crushing. Can produce a variety of material
When the bulk density is 0.2 kg/ to 0.8 DM, when the humidity is less than or equal to 15%?:
Fine crushing and AHZC 06 series widened grinder with fish scale sieve fine screen, the particle size in the range of 0.3 to 1.5 mm, and the particle size is less than or equal to 10 mm;
Coarse crushing, AHZC 06 series widened grinder with round hole mesh, to obtain the size range of 1.5 to 8.0 mm, the particle size is less than or equal to 60 mm.
Performance characteristics:
Each side two screen, easy installation, convenient storage, low use cost;
The screen replaced without any tools. The screen clamping device can meet the 0.3 mm to 3 mm thickness of the screen;
The patent of hammer rod locking device, convenient replacement of the hammer;
Patent hammer hammer sleeve, consistent from beginning to end;
Variable speed feeder located at the top of the hammer pulverator, uniform feeding, but also of gravity separation and iron separation;
The remote control board feeding gate control feed direction and reversing rotor;
The heavy SKF bearing, stable operation, low temperature rise.
